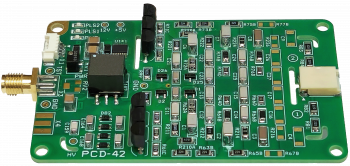

Pockels Cell Driver "PCD-42P"
HV rectangular pulse
Output voltage amplitude:
1300 ÷ 2000 V
1300 ÷ 2000 V
1800 ÷ 2800 V
2600 ÷ 3800 V
3600 ÷ 4800 V
4400 ÷ 5800 V
Quantity
Price
1
$960
$1080
$1440
$1800
$2160
2
$855
$960
$1280
$1620
$1920
5
$760
$860
$1150
$1440
$1710
10
$720
$800
$1080
$1350
$1610
PCD-42P — HV pulse duration (2 ÷ 10 ns) is controlled by the built-in potentiometer. It is a new modification of PCD-41 driver — more performant, efficient and functional.
Generation of high voltage quasi-rectangular pulses with nanosecond rising and falling edges. HV output pulse duration is 2-10 ns and determined by the built-in potentiometer. The driver can be used for ultrafast optical beam modulation and deflection, control of laser regenerative amplifiers and pulse pickers.
Modifications by trigger control:
PCD-42 — HV pulse duration is determined by the duration of one external trigger pulse.
PCD-42T — HV pulse duration is determined by the delay between rises of two external trigger pulses.
Make an order
Generation of high voltage quasi-rectangular pulses with nanosecond rising and falling edges. HV output pulse duration is 2-10 ns and determined by the built-in potentiometer. The driver can be used for ultrafast optical beam modulation and deflection, control of laser regenerative amplifiers and pulse pickers.
Modifications by trigger control:
PCD-42 — HV pulse duration is determined by the duration of one external trigger pulse.
PCD-42T — HV pulse duration is determined by the delay between rises of two external trigger pulses.
Features
- Quasi-rectangular high voltage pulse
- Nanosecond rise and fall times
- Controlled pulse duration
- Pulse jitter is less than 200 ps
- Built-in pulsed high voltage source
- Additional output signal for HV pulse amplitude measurement
- Pulse amplitude adjustment by trimmer or external analog signal
- Low voltage power supply (12 or 24 V)
- Compact design and light weight
Specifications
Output voltage amplitude:
PCD-42-2000
1300 ÷ 2000 V
PCD-42-2800
1800 ÷ 2800 V
PCD-42-3800
2600 ÷ 3800 V
PCD-42-4800
3600 ÷ 4800 V
PCD-42-5800
4400 ÷ 5800 V
Unevenness of the amplitude on the plateau
< 5 %
Output voltage pulse-to-pulse instability
< 1 %
Max pulsed current
20 A
Optimal load capacitance
4 ÷ 10 pF
HV pulse rise time
2 ± 1 ns
HV pulse fall time
2 ± 1 ns
HV pulse duration
2 ÷ 600 ns
Max HV pulse repetition rate
1000 Hz
Trigger voltage (input impedance is 50 Ω)
5 ± 0.5 V
Output pulse delay vs. trigger pulse
16 ± 3 ns
HV pulse jitter
< 0.2 ns
External power supply voltage
10 ÷ 36 VDC
External power supply current
500 mA
Operating temperature range
–40 ÷ +60 °C
Dimensions
80 × 50 × 15 mm
Mounting hole pattern (Ø 3.2 mm)
74 × 44 mm
Weight (OEM version)
100 g
.tiff)
PCD-42P waveforms of the transmitted light beam (1)
PCD-42P2 waveforms of the transmitted light beam
Documentation
PCD-42P
Datasheet
3.19 (MB)
Download PDF
