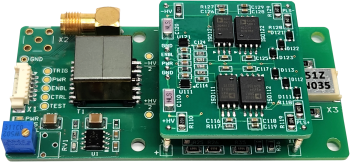

Pockels Cell Driver "PCD-51Z"
HV bipolar pulse (switch-off)
Quantity
Price
1
$1420
2
$1260
5
$1130
10
$1060
Generation of a continuous or pulsed bias voltage with nano-second fall for to control an electro-optical shutter in «switch-off» mode as part of a solid-state laser.
Make an order
Features
- bipolar symmetrical voltage pulse in the «switch-off» mode
- continuous or pulsed bipolar bias voltage
- nanosecond pulse voltage fall time
- trigger pulse jitter is less than 100 ps
- low voltage power supply
- built-in DC and pulsed high-voltage source
- voltage adjustment by built-in trimmer or by external signal
- additional output signal for measuring output voltage
- logic input «Enable» to switch on bias voltage
- SMA-connector (50 Ω) for triggering
- compact design and light weight
Specifications
Bias voltage amplitude Vbias
+ (2800 – 3600) V
Bias voltage wavefront
20 – 50 µs
Bias voltage hold time
> 50 µs
Pulse voltage fall time
1 – 2 ns
Pulse voltage amplitude Vpls
– (280 – 360) V
Pulse wavedecline time
10 – 20 µs
Max HV pulse repetition rate
1000 Hz
Optimal load capacitance
3 – 10 pF
«ENABLE» input voltage
3.3 – 5 V
«ENABLE» input impedance
200 Ω
Trigger voltage
3.3 – 5 V
Trigger input impedance
50 Ω
Output pulse delay vs. trigger pulse
10 – 15 ns
Timing jitter of output HV pulse vs. trigger
< 100 ps
Supply voltage
12 – 24 V
Current consumption at a pulse frequency of 100 Hz
≤ 330 mA & 12V
Operating temperature range
-40 – +50°C
Dimensions
80 × 38 × 16 mm³
Mounting holes (∅ 3.5 mm)
46 × 31 mm
Documentation
PCD-51Z
Datasheet
598.11 (KB)
Download PDF
