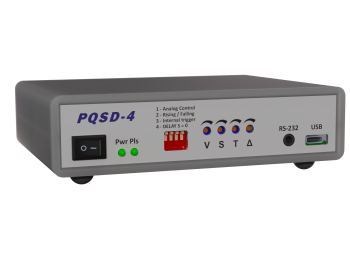

FTIR-Shutter Driver "PQSD-4"
Quantity
Price
1
$c1 id:16 v:1
2
$c2 id:16 v:1
5
$c5 id:16 v:1
10
$c10 id:16 v:1
PQSD-4 provides four synchronized pulses of microsecond duration with magnitude of hundreds of volts. It can be used to control piezo elements of FTIR-shutters for laser Q-switching.
Parameters of the pulses can be adjusted by trimmers in a way similar to PQSD-3MS or can be controlled via USB using the RS-232 protocol. Control of the parameters via a computer provides more precise and flexible control of the parameters and allows setting of output pulse delay and width values independently for each channel.
Make an order
Parameters of the pulses can be adjusted by trimmers in a way similar to PQSD-3MS or can be controlled via USB using the RS-232 protocol. Control of the parameters via a computer provides more precise and flexible control of the parameters and allows setting of output pulse delay and width values independently for each channel.
Features
- 4 high voltage pulsed outputs
- Adjustable pulses amplitude V and width T
- Independently adjustable delay between the pulses Δ
- Adjustable delay S from external trigger
- Power supply via USB or external 12 V PSU
- Built-in high-voltage source
- Compact size
- Control of parameters via computer or by trimmers
Specifications
Number of output channels
4
Max load capacity per channel С
10 nF
Peak current per channel
4 A
Output voltage amplitude V
20 ÷ 300* V
Pulses width T
0.1 ÷ 6 μs
Delay between pulses Δ
0 ÷ 2000 μs
Leading edge width measured at levels 0.33-0.97 Vmax
≤ 0.2 μs**
Falling edge width
≤ 0.2 μs**
Max repetition rate
100 Hz
Triggering pulse amplitude
5 V±20%
Min triggering pulse duration
100 ns
Delay to trigger S
0.1 ÷ 1200 μs
External power voltage
5 ÷ 12 V
Max load power
5 W
Operating temperature range
–40 ÷ +60 °C
Dimensions
140 × 110 × 35 mm3

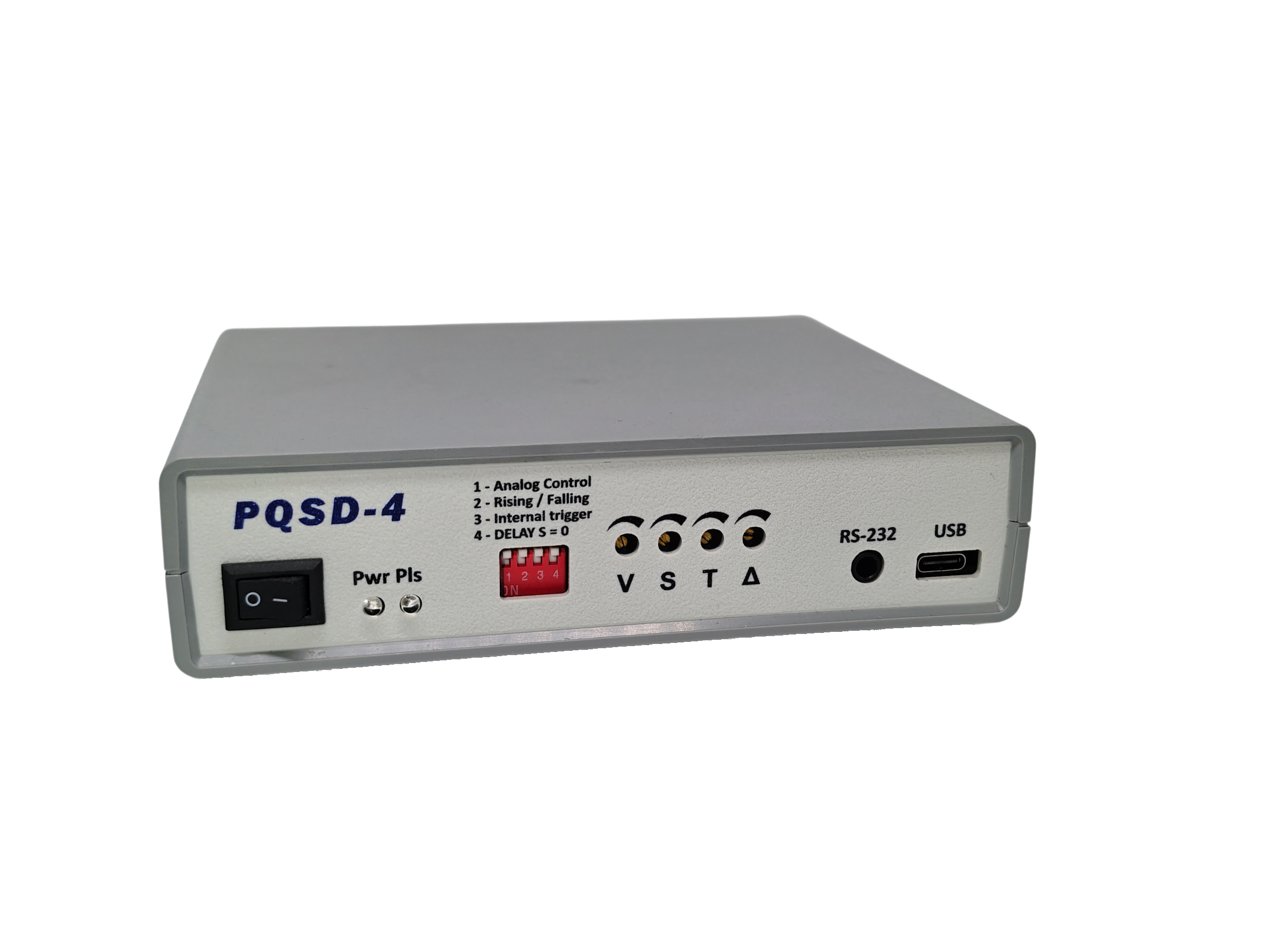

FTIR Shutter PQSD-4 front panel

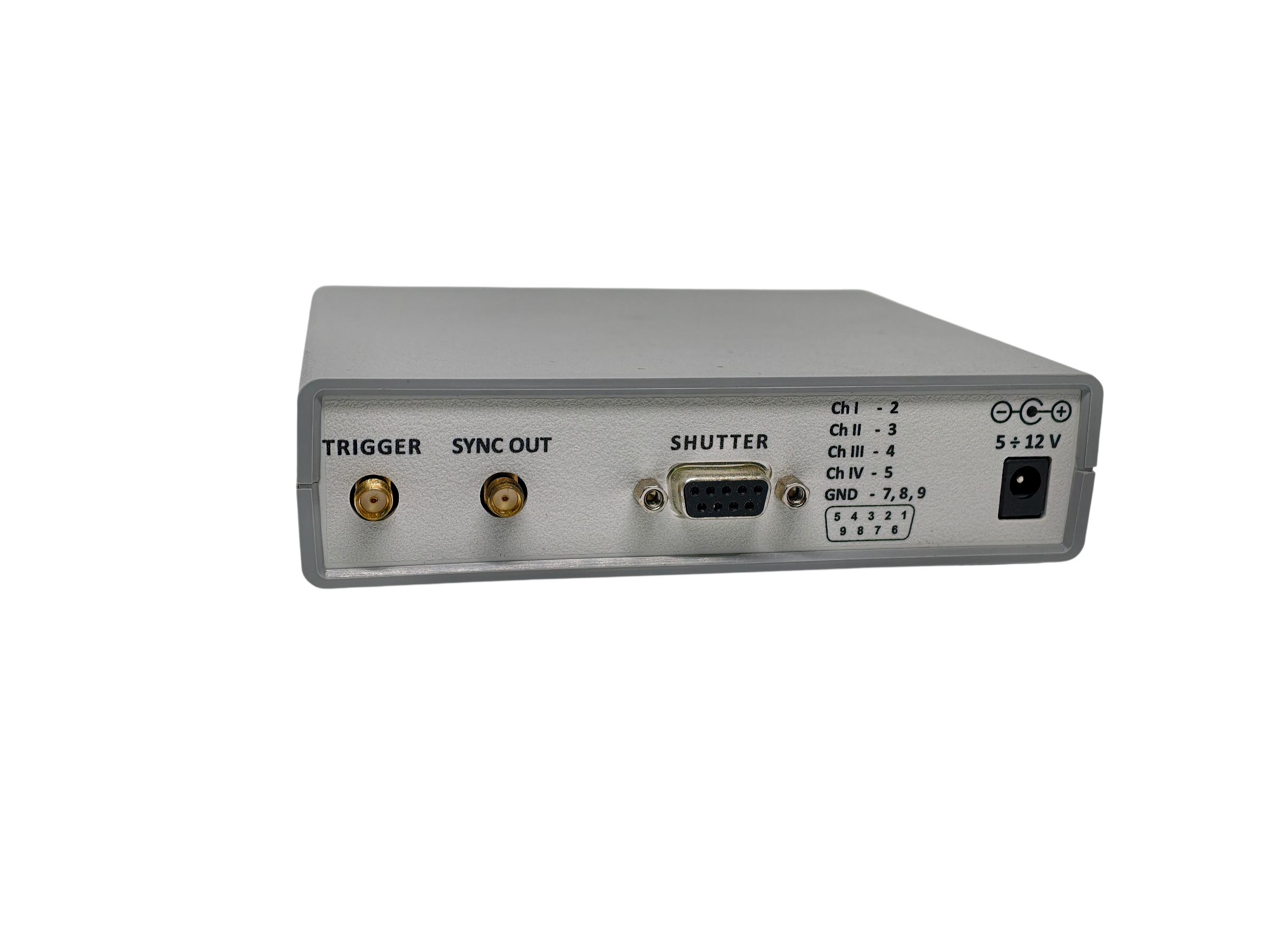

FTIR Shutter PQSD-4 back panel
Documentation
PQSD-4
Datasheet
1.70 (MB)
Download PDF
